Attaining consumer satisfaction is our company's purpose without end. We will make wonderful endeavours to produce new and top-quality merchandise, satisfy your exclusive requirements and supply you with pre-sale, on-sale and after-sale services for Cable Crimping Machine , Copper Cable Stripping Machine , Portable Tape Wrapping Machine , Normally to the majority of business users and traders to offer best quality goods and excellent company. Warmly welcome to join us, let's innovation collectively, to flying dream.
factory customized Automatic Elelctric Tape Wrapping Equipment For Wire Harness - Full automatic multi core wire stripping cutting machine Max.14mm – Sanao Detail:

Product Video

Product Introduction

Processing wire range: 1-10MM outer diameter , SA-9080 is High accuracy Automatic Multi core cable strip cut machine ,Stripping outer jacket and inner core at one time ,Machine with 8 wheel belt feeding, The advantage is can’t hurt wire and High accuracy, It meets the requirements of high-precision wire harness proce, And the price is very favorable,It’s Greatly Improved stripping speed and save labor cost.

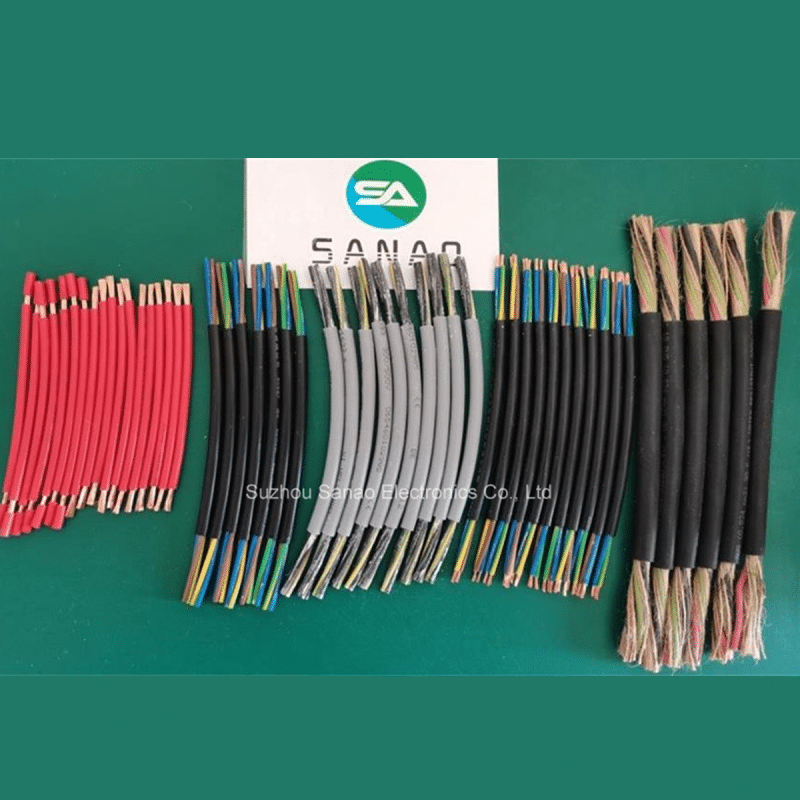

stripping machine 2---shuiying

Advantage

1. English Color Screen: Outer jacket and inner core strip length can directly setting on machine,Very Easy to operate
2. High speed ;1000-2000 pcs / h ,Improved stripping speed and save labor cost.
3. Motor: Copper core stepper motor with high precision, low noise and longer service life.
4. 8-wheel Belt feeding :The advantage is can’t hurt wire and High accuracy
5. Warranty and service: Machine with one year warrantity , Free provide sample test and operate video guide .

Product Parameters

Model

SA-9080

Function

Wire cutting, double-end stripping,middle stripping

Wire range

1-10mm

Strip cores

 2 3 4 5  core

Cutting length

0.1mm-99999.9mm

Stripping length

Outer line:  head:0.1-80mm   tail: 0.1-80mm

Core line:   head:0.1-30mm     tail: 2-30mm

Stripping accuracy

Silent hybrid stepper motor 0.01mm

Intermediate strip

Can be customized

Capacity

1000-2000 pcs / h( L=200mm)

Blade material

Imported tungsten steel/high-speed steel

Power

AC110V/220V  50/60HZ

Body size

470mm*450mm*350mm

Body weight

32kg

Remark function

Automatic entry / exit, timing start, jog adjustment
Product detail pictures:

factory customized Automatic Elelctric Tape Wrapping Equipment For Wire Harness - Full automatic multi core wire stripping cutting machine Max.14mm – Sanao detail pictures

factory customized Automatic Elelctric Tape Wrapping Equipment For Wire Harness - Full automatic multi core wire stripping cutting machine Max.14mm – Sanao detail pictures

Related Product Guide:
Our solutions are widely regarded and trustworthy by consumers and may meet continually modifying financial and social requirements for factory customized Automatic Elelctric Tape Wrapping Equipment For Wire Harness - Full automatic multi core wire stripping cutting machine Max.14mm – Sanao , The product will supply to all over the world, such as: Lithuania , Oslo , Ireland , "Good quality, Good service " is always our tenet and credo. We take every effort to control the quality, package, labels etc and our QC will check every detail during producing and before shipment. We are willing to establish long business relationship with those who seek the high quality products and good service. We have set up a wide sales network across European countries, North of America, South of America, Middle East, Africa, East Asia countries.Please contact us now, you will find our professional experience and high quality grades will contribute to your business.
    • The customer service staff's answer is very meticulous, the most important is that the product quality is very good, and packaged carefully, shipped quickly!
    5 Stars By Sarah from Wellington - 2018.09.21 11:44
    Company director has very rich management experience and strict attitude, sales staff are warm and cheerful, technical staff are professional and responsible,so we have no worry about product,a nice manufacturer.
    5 Stars By Salome from Jordan - 2017.09.28 18:29
