Factory Price Electric Wire Stripping And Crimping Machine - 0.1-6mm² Wire Cutting Stripping And Twisting Machine – Sanao Detail:

Product Video

Product Introduction

Processing wire range: 0.1-6mm², SA-209NX2 is a economical full automatic wire cutting stripping and twisting machine for electronic wires ,It’s adopted Four wheel feeding and English display , very easy to operate ,SA-209NX2 can process 2 wire and stripping twisting both end at one time and Stripping length 0-30mm ,It’s Greatly Improved stripping speed and save labor cost..Widely used in wire harness,Suitable for cutting and stripping electronic wires,PVC cables, Teflon cables, Silicone cables, glass fiber cables etc.

The machine is fully electric, and the stripping and cutting action are driven by stepping motor,not need additional air supply . However, we considering that the waste insulation  may fall onto the blade and affect the working accuracy. So we think It is necessary to add an air blowing function next to the blades, which can automatically clean the blades’s waste when connected to the air supply,This greatly improves the stripping effect.

Product Display

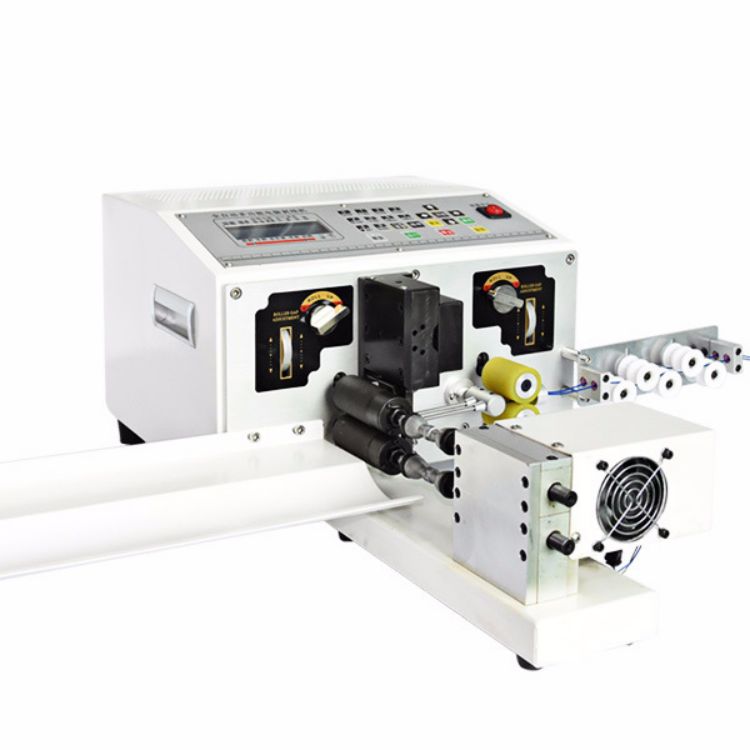

Automatic twisting machine

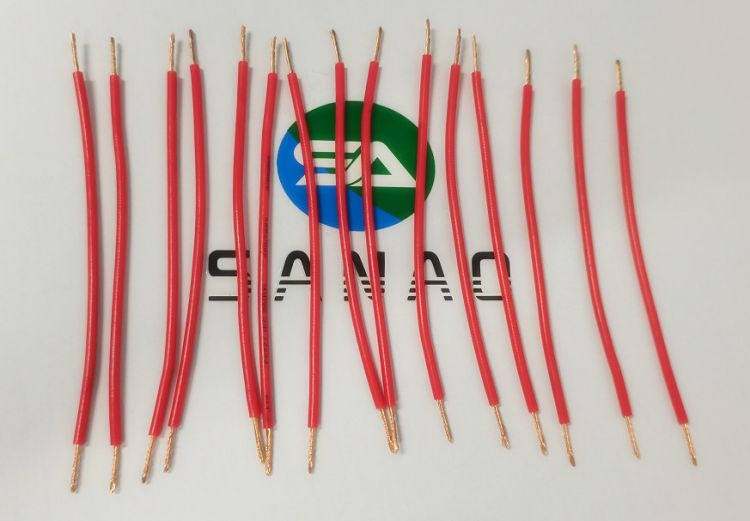

wire stripping machine 6

Advantage

1. Full English display: Mahcine is Full English display that is very easy to operate , and Our machine have 99 kinds of  programs, It can be set according to different stripping requirements, Meet customers’ various stripping requirements.

2. Many kinds of processing methods: One-time completion of automatic cutting, half stripping, full stripping, multi-section stripping.

3. Motor: Copper core stepper motor with high precision, low noise, precise current which controls motor heating well, longer service life.

4. Pressing line adjustment of wire feeding wheel: tightness of the pressing line at both wire head and wire tail can all be adjusted; adapt to wires of various sizes.

5. High quality blade: High-quality raw materials with no burr free incision are durable, wear-resistant and have a longer service life.

6. Four-wheel driving: Four-wheel driven stable wire feeding; adjustable line pressure; high wire feeding precision; no damage and to pressure to wires.

Product Parameters

Model

SA-209NX2

Features

Process one or two wire at one time

Conductor Cross-Section

Single wire 0.1-6mm²; Double wire 0.1-2.5mm²

Cutting Length

0.1–100000mm

Cutting Length Tolerances

±(0.0001*L)mm

Stripping Length

Head 0-30mm, Tail 0-30mm

Conduit Diameter

1-4mm

Production Rate

L=100mm, 4000-10000pcs/h

Display Screen

Chinese / English LCD Screen

Drive Method

4 wheels drive

Power

520W

Power Supply

110/220VAC, 50/60Hz

Weight

34kg

Dimensions

53*53*40cm


Product detail pictures:

Factory Price Electric Wire Stripping And Crimping Machine -
 0.1-6mm² Wire Cutting Stripping And Twisting Machine – Sanao detail pictures

Factory Price Electric Wire Stripping And Crimping Machine -
 0.1-6mm² Wire Cutting Stripping And Twisting Machine – Sanao detail pictures
