Fully automatic terminal crimping house inserting and dip tining machine

Short Description:

Model:SA-FS3700
Description: The machine can both side crimping and one side inserting , up to rollers of different colors wire can be hung one a 6 station wire prefeeder , the order can length of each color of wire can be specified in the program , the wire can be crimping , inserted and then fed by the vibration plate automatically , the crimping force monitor can be customized according to production requirement .

Send email to us

Product Detail

Product Tags

Product Video

Feature

The machine can both side crimping and one side inserting , up to rollers of different colors wire can be hung one a 6 station wire prefeeder , the order can length of each color of wire can be specified in the program , the wire can be crimping , inserted and then fed by the vibration plate automatically , the crimping force monitor can be customized according to production requirement .

Feature

1. This full automatic machine is mainly used for wire cutting,both end stripping and crimping,wire reverse processing, and both end terminal connector inserting.

2.Single head with house assemble inserting and double ends with terminal crimping.

3.It's good choice for electrical cable wire processing and manufacturing industries

like automation area, automobile area, aerospace/aviation area, appliance industries etc.

Model	SA-FS3600
Functions	Wire cut,both end strip,one end dip tin, one end terminal insert, wire reverse process, auto tin feed, auto fluxing
Functions
Wire size	AWG#20 - #30（Wire diameter below 2.5mm）
Wire color	10 colors（Optional 2～10）
Cut length	50 mm - 1000 mm (set unit as 0.1mm）
Cut tolerance	Tolerance 0.1 mm +
Strip length	1.0mm-8.0mm
Dip tin length	1.0mm-8.0mm
Strip tolerance	Tolerance +/-0.1 m m
Crimp force	19600N（equivalent 2 ton）
Crimp stroke	30mm
Universal crimp tool	Universal OTP crimp tool
Testing device	Low pressure,whether lack of wire,whether wire overload,clamping error,whether lack of terminal,terminal overload,terminal insert detect, pressure sensing device (optional),CCD visual inspection (optional)
Control mode	PLC control
Internal control voltage	DC24V
Power supply	Single phase ~AC200V/220V 50HZ 10A (110V/60Hz optional)
Compressed air	0.5MPa、about 170N/min
Working temperature range	15°C - 30°C
Working humidity range	30% - 80%RH No dew.
Warranty	1 year（Except for consumables）
Machine dimension	1560Wx1100Dx1600H
Net weight	About 800kg

Our Company

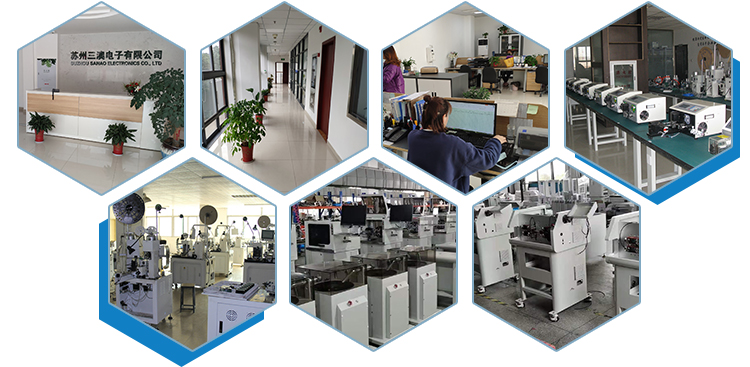

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
