Portable Crimp Cross Sectioning Analyzer Equipment

Short Description:

Model :SA-TZ5

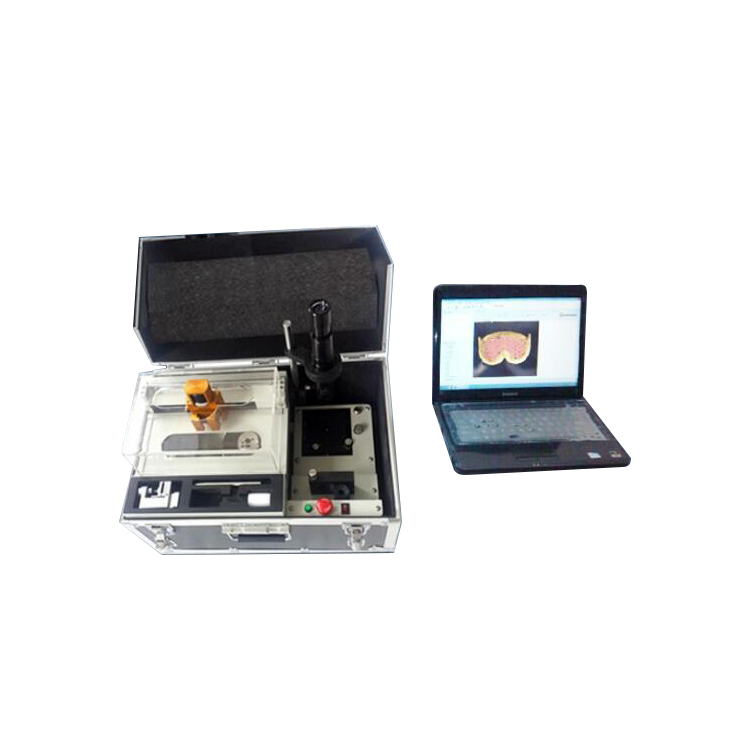

Description: The terminal cross-section analyzer is designed to detect the quality of crimping terminal, it includes the following modulesterminal fixture, cutting and grinding corrosion cleaning. cross-section image acquisition, measurement and data analysis.enerate data reports. It only takes about 5 minutes to complete the cross- section analysis of a terminal


Product Detail

Product Tags

Product Video

Product Introduction

The  is designed to detect the quality of crimping terminal, it includes the following modulesterminal fixture, cutting and grindingcorrosion cleaning. cross-section image acquisition, measurement and data analysis.enerate data reports. It only takes about 5 minutes to complete the cross-section analysis of a terminal

Feature

1.Mainly used on cross section testing after terminal crimping.
2.Core testing components is imported from Germany , with long service life.
3.Fast analysis technology of new terminal crimping;
4.The processing of cutting and grinding is in the same chamber, to ensure consistency of the direction of the cutting and grinding.
5.Efficiently saving time of operation and easy maintenance
6.The transmission technology of Japan made high precision ball screw can effectively ensure the cutting precision, and the grinding technology of Z-axis fine adjustment ;
7.With imported ultra thin cutting disk, it overcome the defect of deformed terminal
8.High measuring precision, stable performance, strong capability of resisting disturbance.
9. Brushless motor, low consumption, dual motor independent control, stepless debugging.
10.The rotary data collecting system, which can automatically choose the related speed for the different terminals.

5fc9e846f2ceb761
20201204144808_50290

Model

SA-TZ5

Control System

Adopt Japanese Mitsubishi PLC controller - SBL

Module cut range

0.13 ~6.00 mm2

Rotate speed

2800 rpm (Imported motor from Germany)

Cut speed

2 mm / sec

Cut wheel inner diameter

21.7 mm, OD:105 mm, thickness: 0.5 mm (Germany imported,
delicate and durable)

Module grind speed

2800 rpm (Imported motor from Germany)

Z-axis slightly tuning range

0.00~5.00 mm

Special sandpaper OD

100 mm

X-axis shift

Japanese Panasonic servo motor

Eclipse partial electrolysis

Up to 6 mm2

Electrolysis time

5~30 sec

Picture ingestion

High quality, low distortion optical instrument with
10x eyepiece
